Manual Hydraulic Pressure Calibrator Pump 100Mpa M20*1.5

low cost hand manual Hydraulic Pressure Calibrator Pump

Description low cost hand manual Hydraulic Pressure Calibrator Pump

portable pressure calibrator for pressure gauge comparator is special designed for on-site calibration of pressure gauge, with an open, transparent design, simple, stable buck, adjust fineness small, easy to maintain, difficult to leakage characteristics, well-designed exhaust valve effectively avoid pollution.

Features portable pressure calibrator

Currently in China metrology or calibration industry, widely used piston type dead weight tester or bench type pressure calibrator, electric pressurecalibration sets and other products, these products are generally with largevolume, they are inconvenient to carry, and pressing hard, complicated operation. Combined with the above reasons,our company recently developed new product XY-2006B portable hydraulic pressure source that easy to carry, simple and easy operation.

Notes pressure calibrator

1). The inspected Instrument must be cleaned if with impurities beforecalibration.
2). The inspected instrument must be cleaned by carbon tetrachloride solution if this equipment containing strong corrosive medium.

3). The thread with damage of inspected instrument, the output maybe leak. Please configure my company joints and the sealing aluminum pad.
4). Closed every output port when not use, tight Filling Port (1), place the calibrator in clean and dry place.
5). This calibrator must not used with with other calibator, and it must not exceed the rated pressure.

Detailed Images low cost hand manual Hydraulic Pressure Calibrator Pump

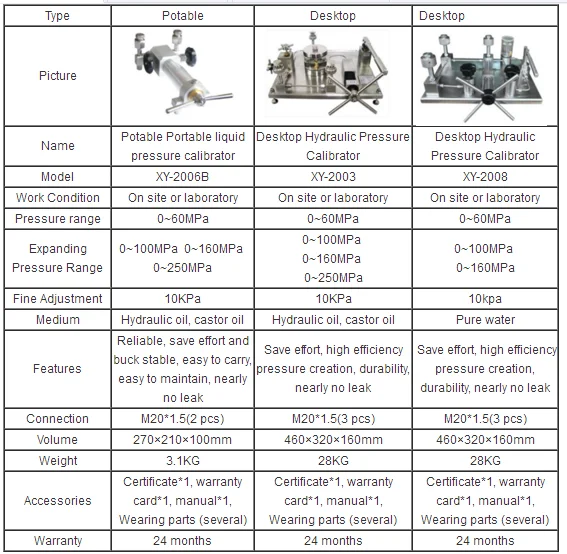

Specification low cost hand manual Hydraulic Pressure Calibrator Pump

M20x1.5 Hydraulic Pressure Calibrator Pump

Hydraulic Pressure Calibrator Pump 100Mpa

Manual Hydraulic Pressure Calibrator Pump

Manual Hydraulic Pressure Calibrator Pump 100Mpa M20*1.5 Images
